Description

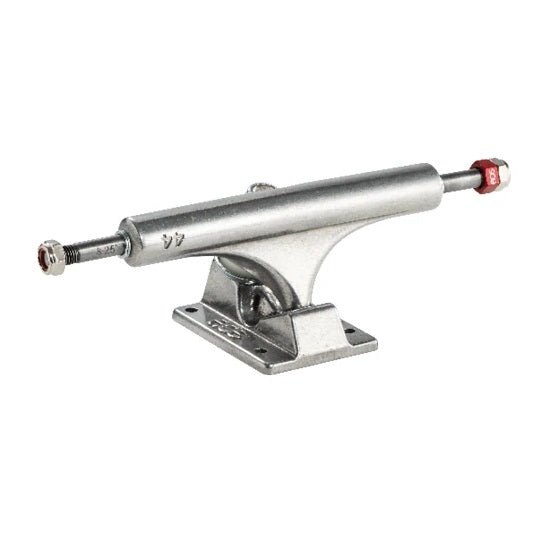

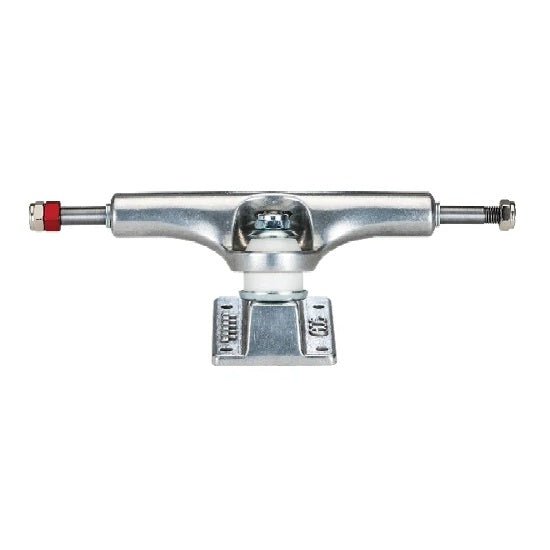

Experience groundbreaking performance without altering the classic Ace geometry with the new Ace AF1. Crafted with our unique casting method, the AF1 has been meticulously developed over years to provide a 70% boost in the structural integrity of its aluminum, making it the most durable cast truck available. For improved compatibility with various board widths, we have adjusted the sizing for the 44 through 77 models. Discover tomorrow's technology with the Ace AF1 today.
Features:
- Axle width: 8.25” (209mm)
- Hanger width: 5.6” (143mm)
- Truck height: 2.1” (53mm)
- Fits boards: 8.125” - 8.3”
- Weight: 13.9 oz
- Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
- True T6 heat-treated baseplates and hangers
- SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
- Patent pending rethreading axle nuts - no more damaged axle ends!
- Durable Hand-poured 96a urethane pivot bushings for better response.
- Refined suspension for a cleaner turn.
- Top Bushing: 12mm tall | 91a hardness
- Bottom Bushing: Bottom 14mm tall | 86a hardness
- Machine-faced hanger ends for precise bearing contact.
