Description

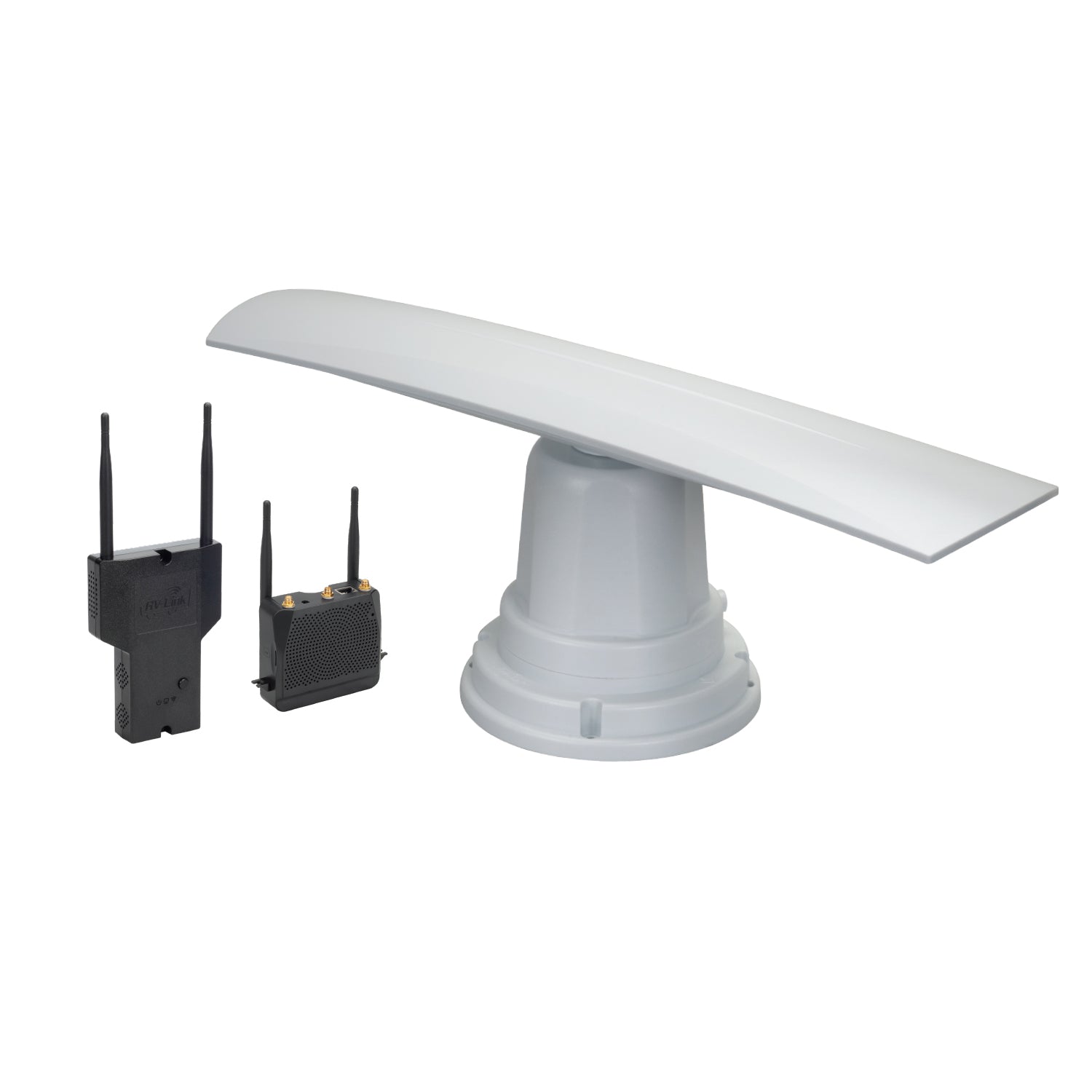

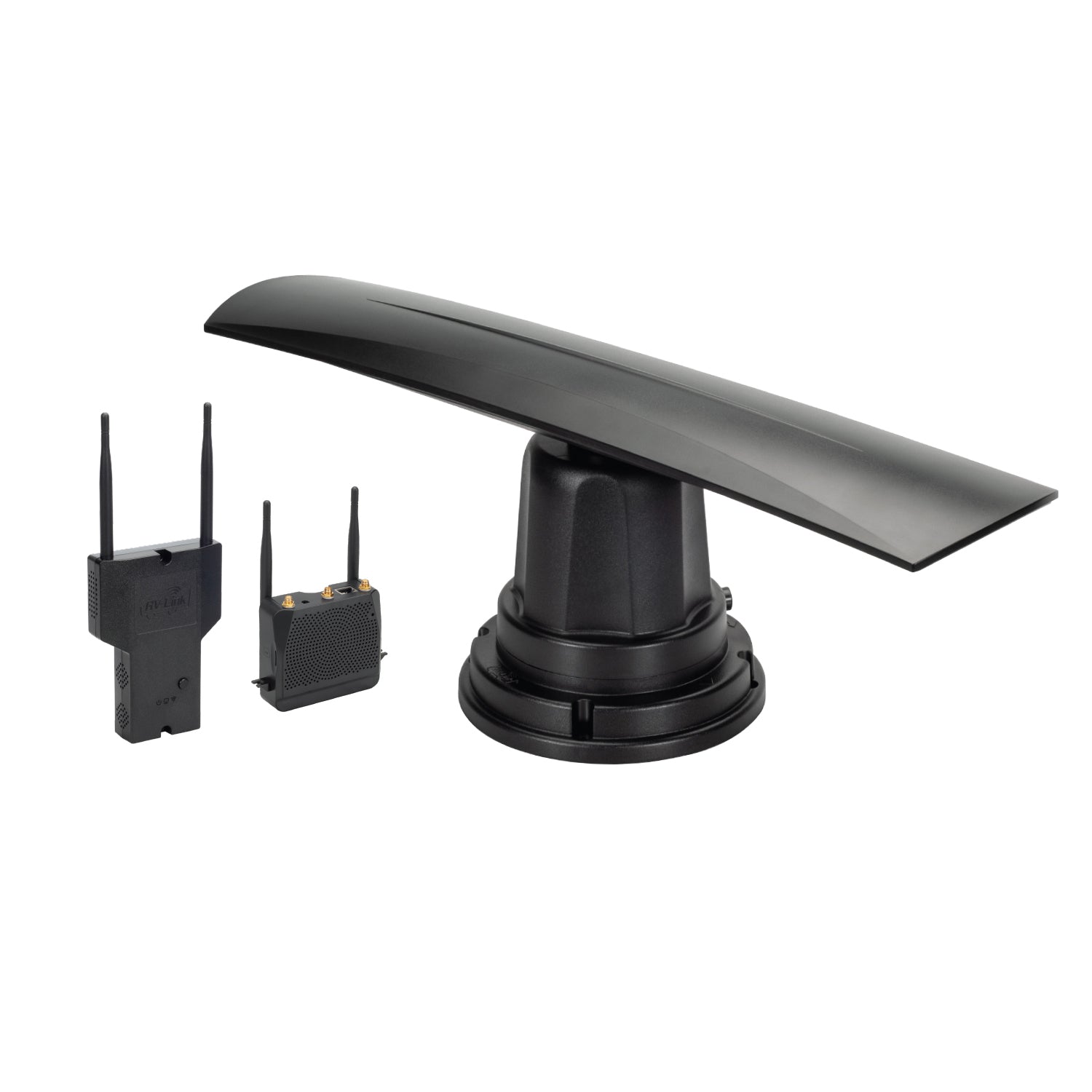

Magnadyne’s TV-1-WIFI/LTE is an all-in-one TV/AM/FM/Wi-Fi solution, providing all the comforts of home in an RV getaway. When it comes to Wi-Fi signals like the ones at host locations like campsites, they can often be weak when inside trailers and coaches, but with our Wi-Fi package, the host signal is picked up by high gain antennas and passed into the interior of the vehicle*. The interior Wi-Fi signal is programmable just like any normal Wi-Fi routers found in homes, complete with customizable login passwords and SSIDs.
Product:

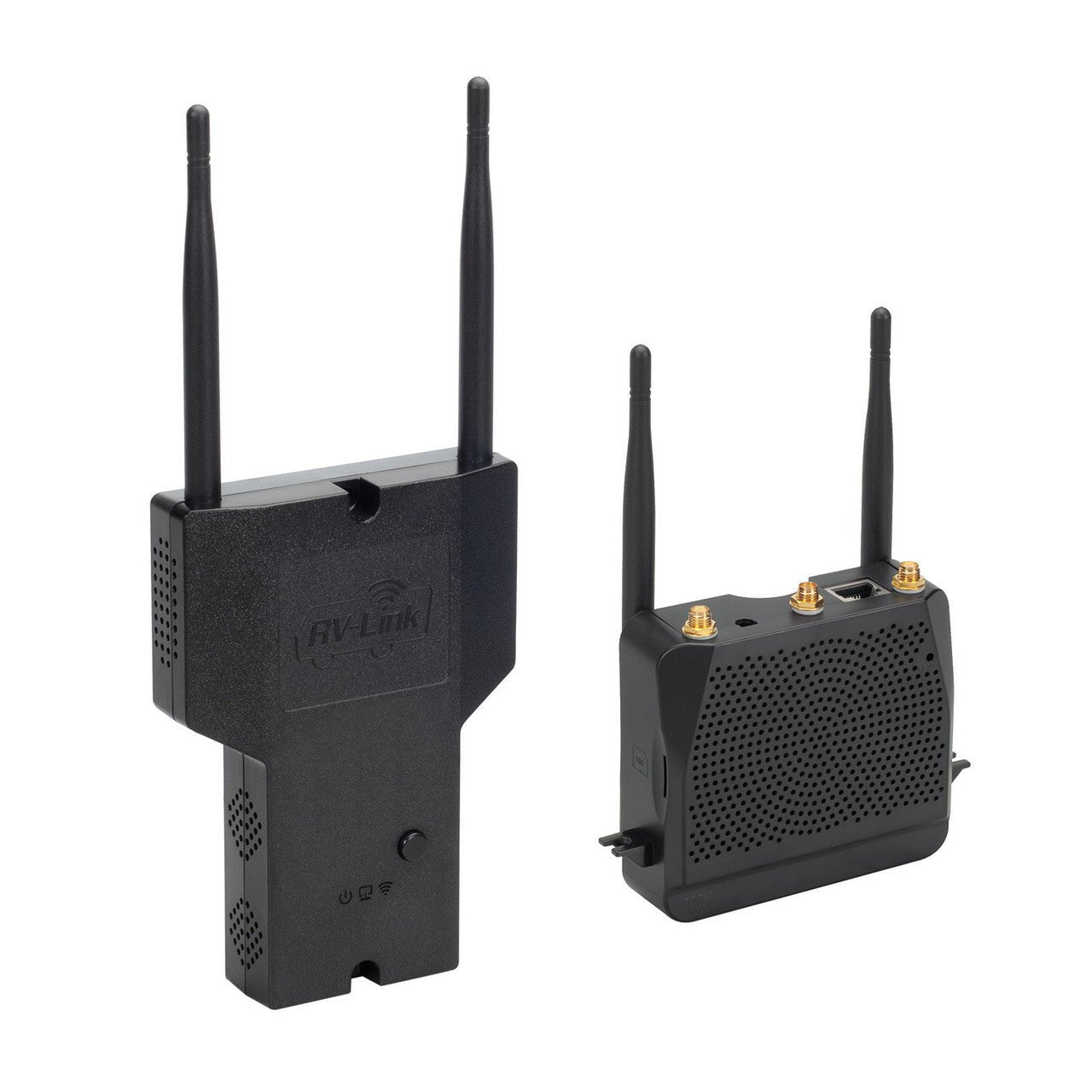

Appealing OEM styled, exterior mounted 2.4 GHz long range Wi-Fi extender with high gain antennas. A compact and modern styling of the interior 2.4 / 5.8 GHz router allows for easy installation. Everything you need for installation, comes in the box.
For the RV Enthusiast:
True 12 Volt DC design allows for direct connection to the vehicle’s DC power without using adapters or the need for 110 Volt power source. System remembers past campground Wi-Fi SSID and passwords for easy reconnect upon return.
Setup:
Wired pairing provides easy, flexible installation options for the RV owner using the easy-to-use interface to configure the system. The interface has been optimized for smart phone, tablet or computer use. Setup designed for easy personalization of SSIDs and passwords for 2.4 / 5.8 GHz interior router.
Designed for RV & marine use
- HDTV (ATSC) compliant
- No aiming/adjusting required
- Single coax for TV signal
- Single Motorola for radio signal
- Mounting hardware included

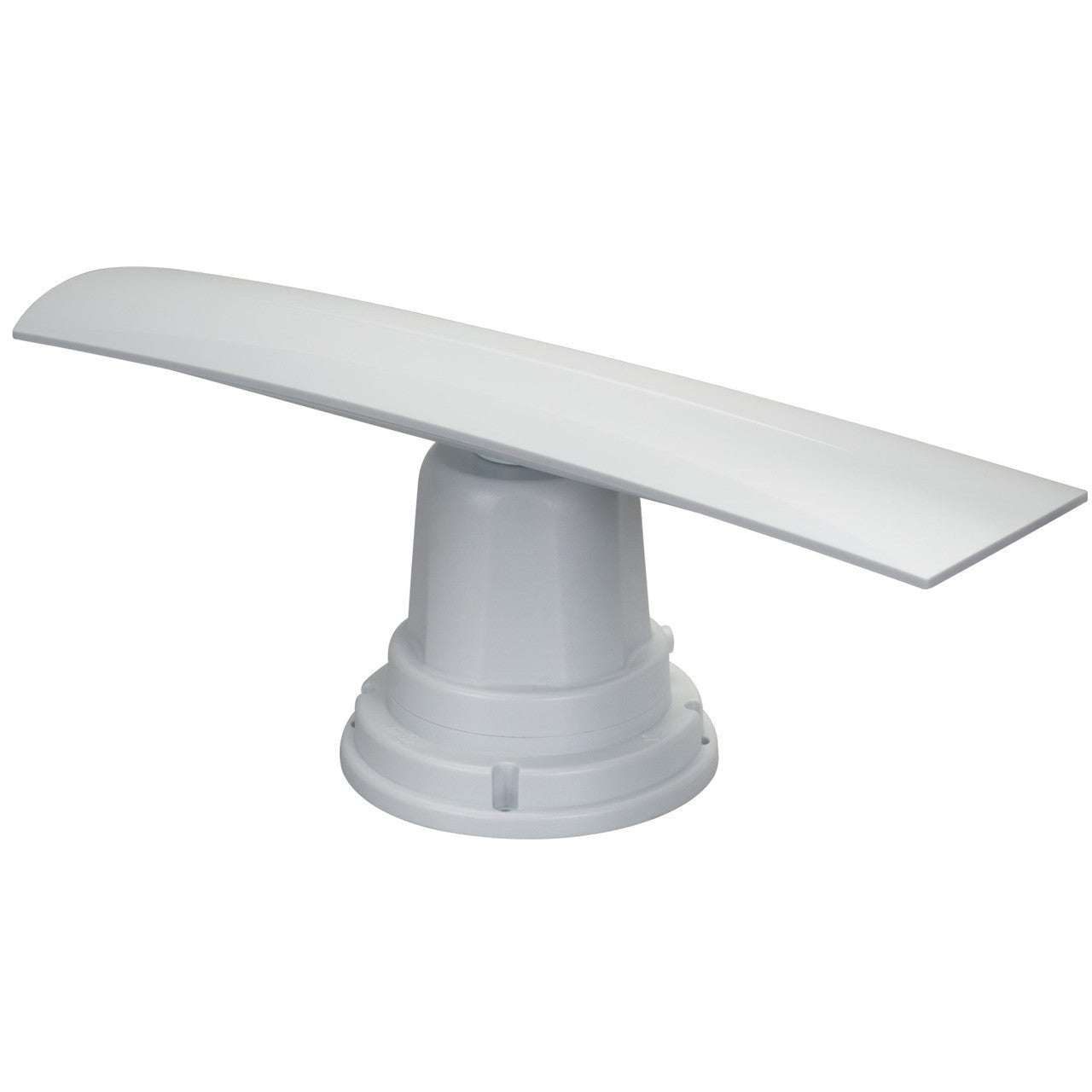

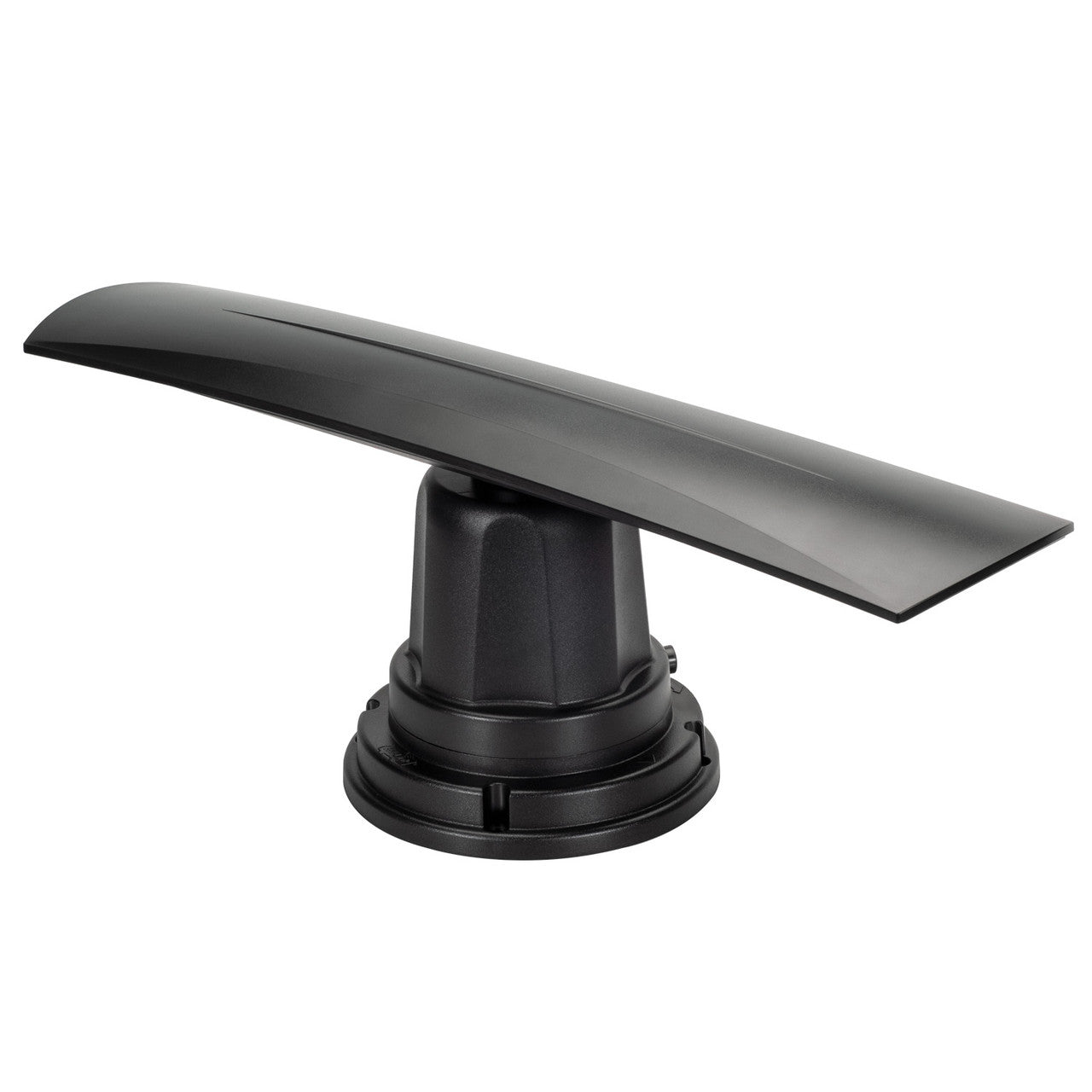

- Aerodynamic housing with high-impact, weatherproof and UV protected materials
- 24” wing length, 8” height w/ base
- AM: 520-1710K, FM: 87.5-108MHz, VHF: 47-230MHz, UHF: 470-862MHz
- AM gain: 6 dB
- Maximum output level: 104dB
- Impedance: 75 ohms
- Power supply: DC 12V
- Extender with high gain antennas boosts WIFI / LTE signals
- Router rebroadcasts signal into interior of coach with customizable SSID and password
- Long range Wi-Fi/LTE connection for all enabled computers, phones, TV’s, radios and other devices
- Memorizes the WIFI credentials of previous stops and reconnects automatically when within range
- 2.4Ghz / 5Ghz, WPA2 security, 12v DC 1.5A

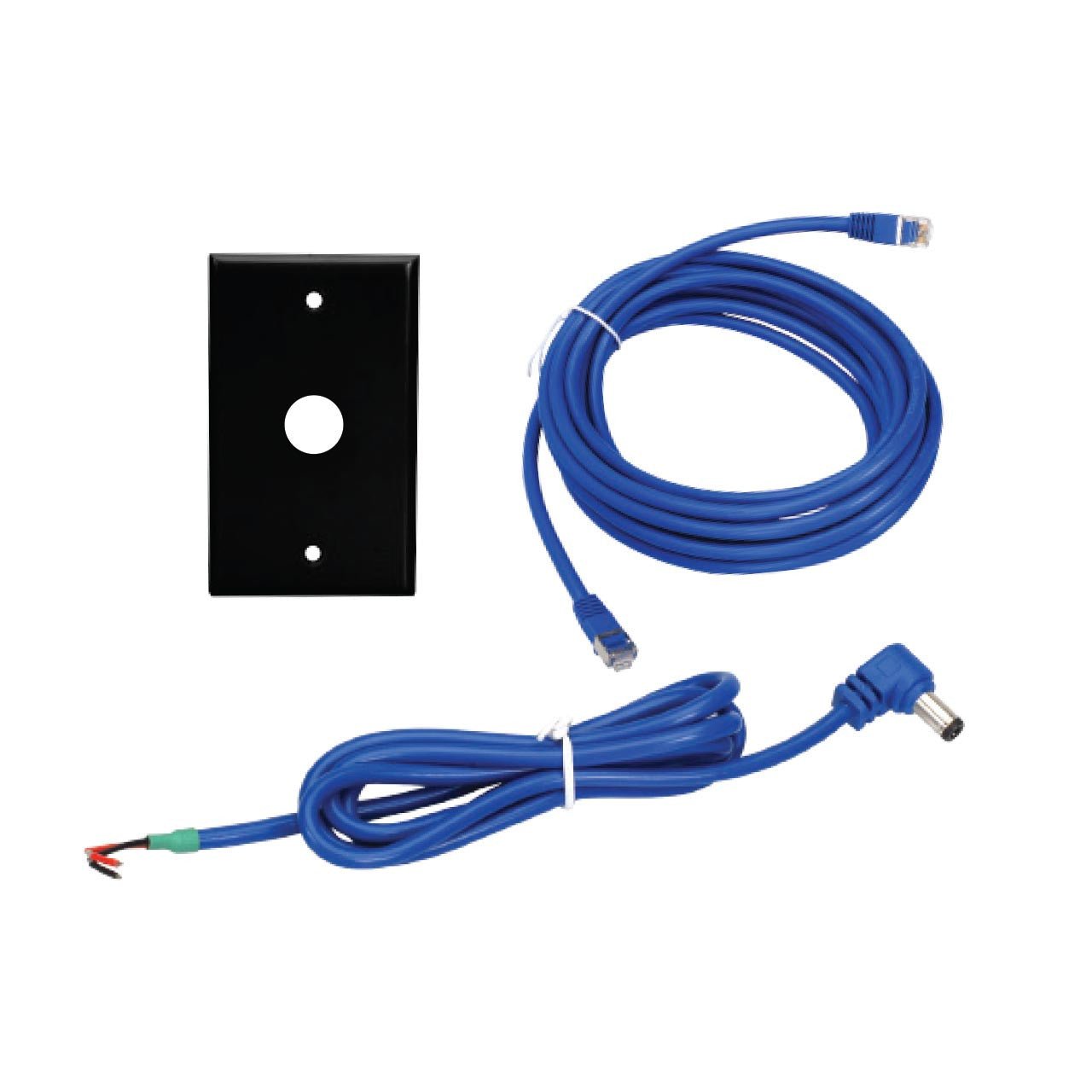

- Antenna wall plate included
- Patent No.: US D855,591 S, US 10,622,709 B2, US 10,994,159 B2
Function/Spec List:
- Outdoor Wi-Fi Range Extender - 2.4 GHz,
- Indoor Wi-Fi Router - 2.4 GHz and 5.8 GHz
- Outdoor Wi-Fi Max Range** - 1/2 Mile
- Operating Voltage - 12 Volts DC
- Wi-Fi Security – WPA
The RV-WIFITVB-W is the RV enthusiast’s answer to bringing the internet to their fingertips. Wi-Fi signals at campsites and RV parks are often difficult to connect to from within a RV, coach or 5th wheel. The RV-WIFITVB-W kit has everything you need to boost the host Wi-Fi signal and pass it inside your RV to the included MobileVision Wi-Fi router. Captured using dual, high gain antennas mounted on the roof of your Bus, Camper or Toy hauler, the signal can be passed to the interior router using wired or wireless methods. The interior Wi-Fi network name and password can be personalized just like a home Wi-Fi network. The router supports multiple users so that everyone can be connected to the internet of things via smart phones, tablets, laptops, smart-tvs, game consoles, intelligent personal assistants, and home automation devices.
* Attention U.S. service members: If you live in an area where internet is provided through Moral, Welfare, and Recreation (MWR) services, please check with your internet provider to make sure that 3rd party Wi-Fi extenders are allowed on your network before making a purchase.
** Note - max Wi-Fi range is based on ideal conditions with high power access point and direct line of sight - max range is not to be expected under normal operating conditions.
Design Patent: US D855,591 S
Utility Patent: US 10,944,159 B2
THIS ITEM SHIPS DIRECT. NOT AVAILABLE FOR IN STORE PICK UP.
